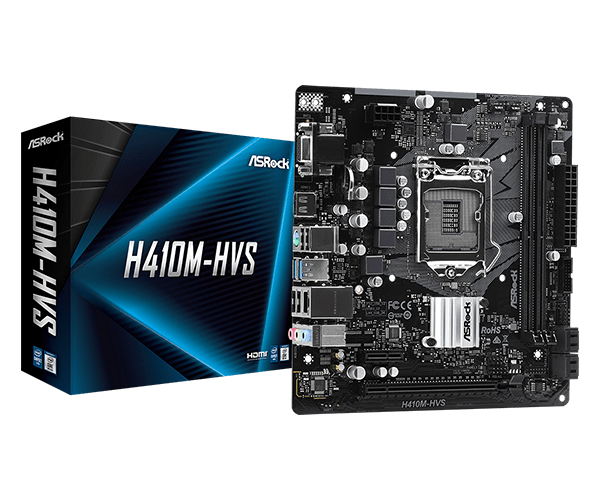

Mainboard ASROCK H410M-HVS (Intel H410, Socket 1200, m-ATX, 2 khe Ram DDR4)

Sản phẩm

Bo mạch chủ

Tên Hãng: ASROCK
Model: H410M-HVS
CPU hỗ trợ: Intel

Chipset: H410
RAM hỗ trợ: 2 x DDR4 DIMM Slots ( tối đa 64GB )
Supports DDR4 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory

Khe cắm mở rộng :1 x PCI Express 3.0 x16 Slot
1 x PCI Express 3.0 x1 Slot

Ổ cứng hỗ trợ: 4 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal): 1 x SPI TPM Header

1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Cổng kết nối (Back Panel): 1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
4 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless: PCIE x1 Gigabit LAN 10/100/1000 Mb/s
1 x Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Kích cỡ: Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
